4.3 Inch 480x272 RGB TFT LCD Display Module with Capacitive Touch Panel

製品の説明

Product Description

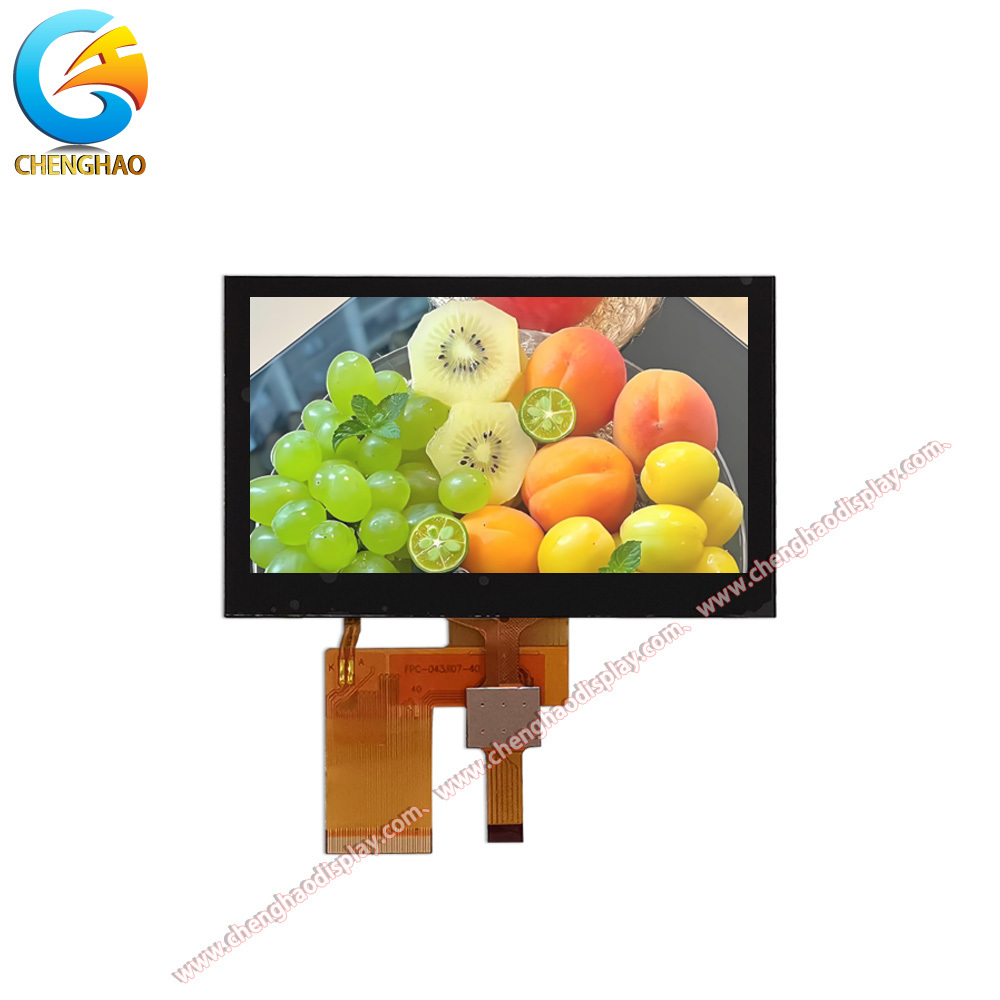

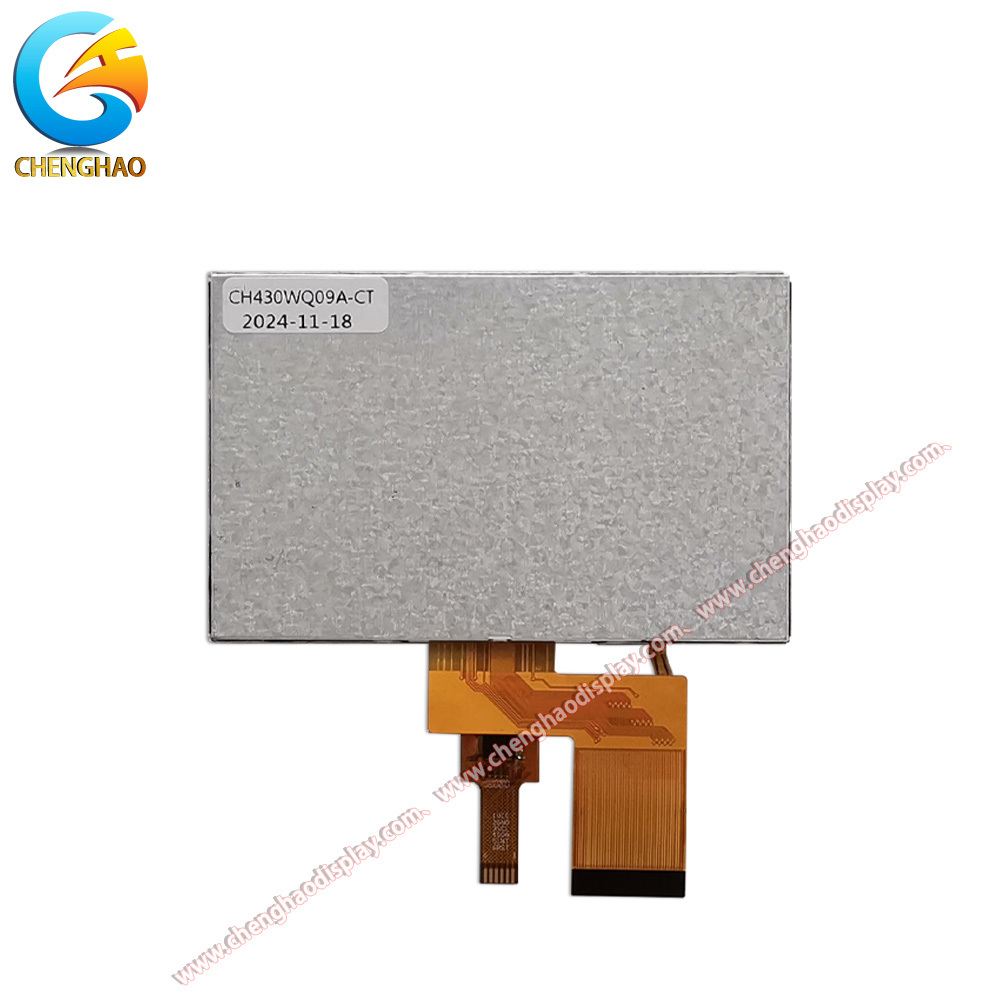

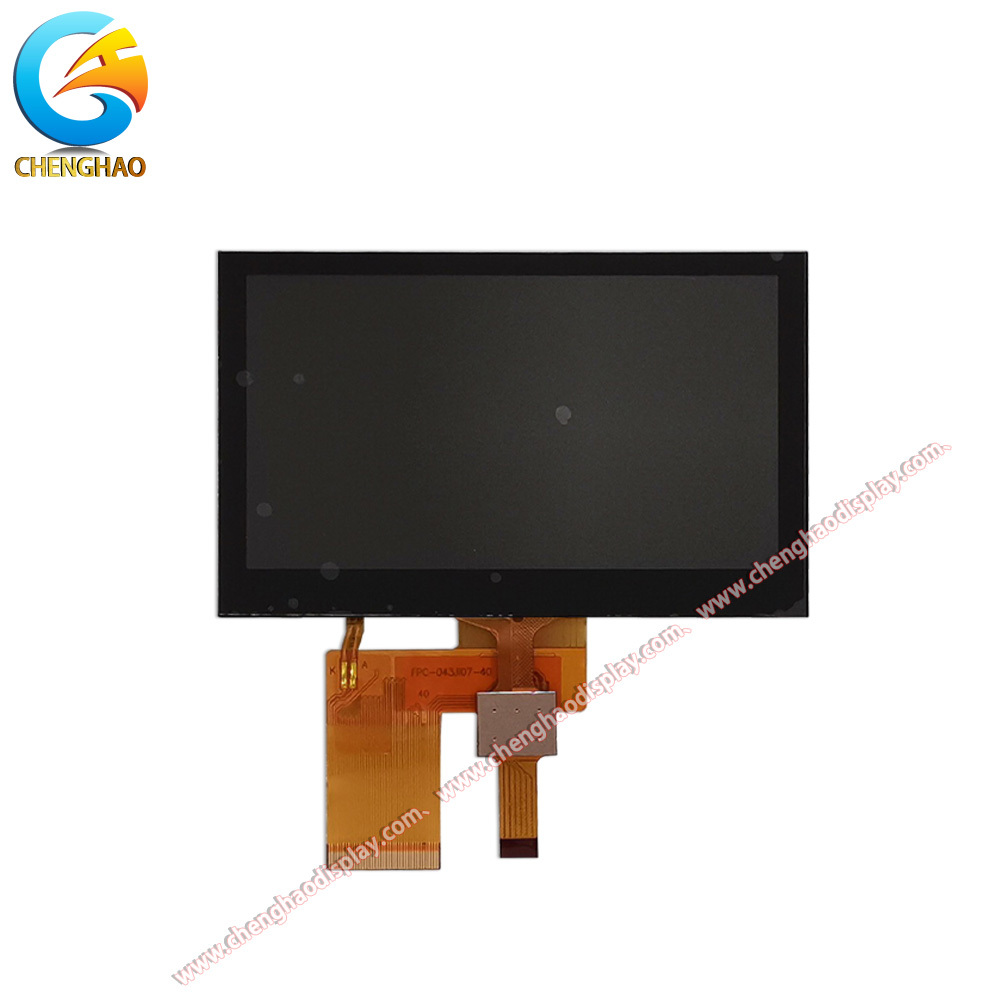

Need a display that handles both graphics and touch? The CH430WQ09A-CTC is a 4.3-inch TFT LCD module with 480x272 resolution. It's built for embedded systems, control panels, and HMI applications where space matters.

A capacitive touch panel sits right on top, driven by the FT5426 controller. So you get multi-touch response without extra assembly work. The ***** driver IC handles the RGB interface, pushing consistent color and sharp images through an LED-backlit transmissive panel.

Temperature-wise, this module works from -20C to +70C without issues. That makes it a solid pick for industrial gear and semi-outdoor setups. And at just 5.23mm thick with a 39-pin FPC connector, it doesn't take up much room inside your enclosure.

Features

• 480x272 WQVGA Resolution

Sharp visual output with RGB stripe pixel arrangement. Works well for text, icons, and graphical interfaces in embedded applications.

• Built-in Capacitive Touch Panel

Integrated CTP with FT5426 IC supports multi-touch. Cover glass has 6H hardness for scratch resistance, which helps with long-term durability.

• 12 O'Clock Viewing Direction

Optimized from the top side. Fits instrument panels, wall-mounted displays, and vertical mounting setups.

• 300 cd/m2 Brightness

Standard brightness with transmissive polarizer. Good readability in indoor and ambient-lit conditions.

• Wide Operating Temperature

Works from -20C to +70C without issues. Suitable for industrial equipment and semi-outdoor use.

• RGB Interface Connectivity

Standard RGB parallel interface with a 39-pin FPC. Connects easily to application processors and MCUs.

• Compact Module Design

Thin profile at 5.23mm total thickness (including CTP). Fits into tight spaces inside the device enclosure.

• RoHS Compliant

Made with environmentally friendly materials and processes. Fully RoHS compliant for global distribution

Technical Parameters

Modification and Customization

We're a display module manufacturer, which means we don't just sell off-the-shelf parts. The CH430WQ09A-CTC is our standard build, but we can change quite a bit on it.

Need different brightness levels? We can tune that. Want a custom FPC shape or a different interface type? Also doable. The capacitive touch sensitivity, cover glass coating (anti-glare or anti-fingerprint), and EMC performance can all be adjusted too.

If the standard module doesn't quite match your project, we'll start from your specs instead. Resolution, brightness, interface, touch setup, mechanical dimensions — all of it can be defined by what you actually need. Just tell us the requirements, and our engineers take it from there.

FAQ

Q: Can the brightness and FPC of the CH430WQ09A-CTC be customized?

A: Yes. We can tune the brightness (standard: 300 cd/m2), change the FPC shape and pin assignment, or adjust the interface based on your needs.

Q: Is Chenghao an actual LCD manufacturer?

A: Yes. We run our own production facility and have been operating since 2015. We hold ISO 9001, ISO 14001, CE, RoHS, and other certifications.

Q: What's the minimum order quantity?

A: MOQ is 100 pieces. Samples ship in 3-7 working days. Bulk orders follow the timeline we agree on with you.

Q: Does it support multi-touch?

A: Yes. The **** controller handles multi-touch via standard I2C. Integration is straightforward with most embedded processors.

Q: What's the typical lead time for bulk orders?

A: Depends on quantity and current production. Our monthly capacity supports timely delivery for most volumes. Contact our sales team for a timeline based on your order.
