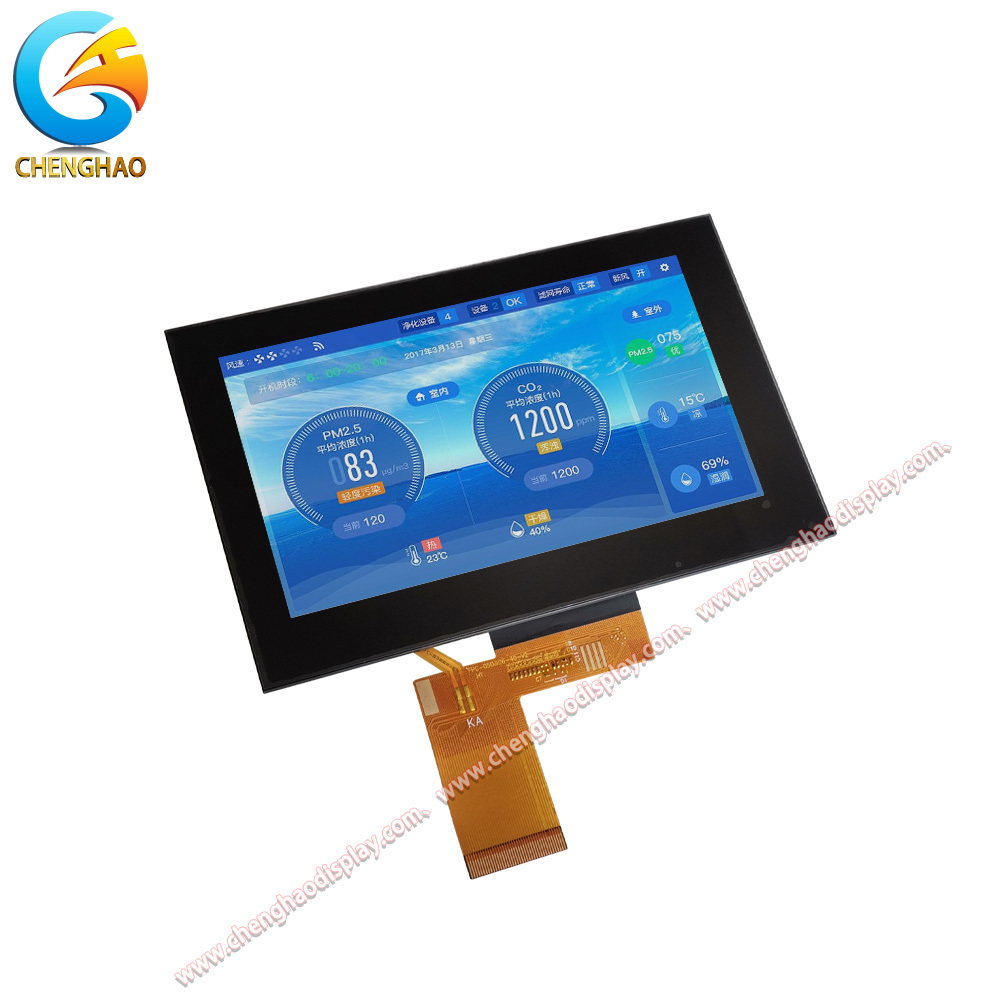

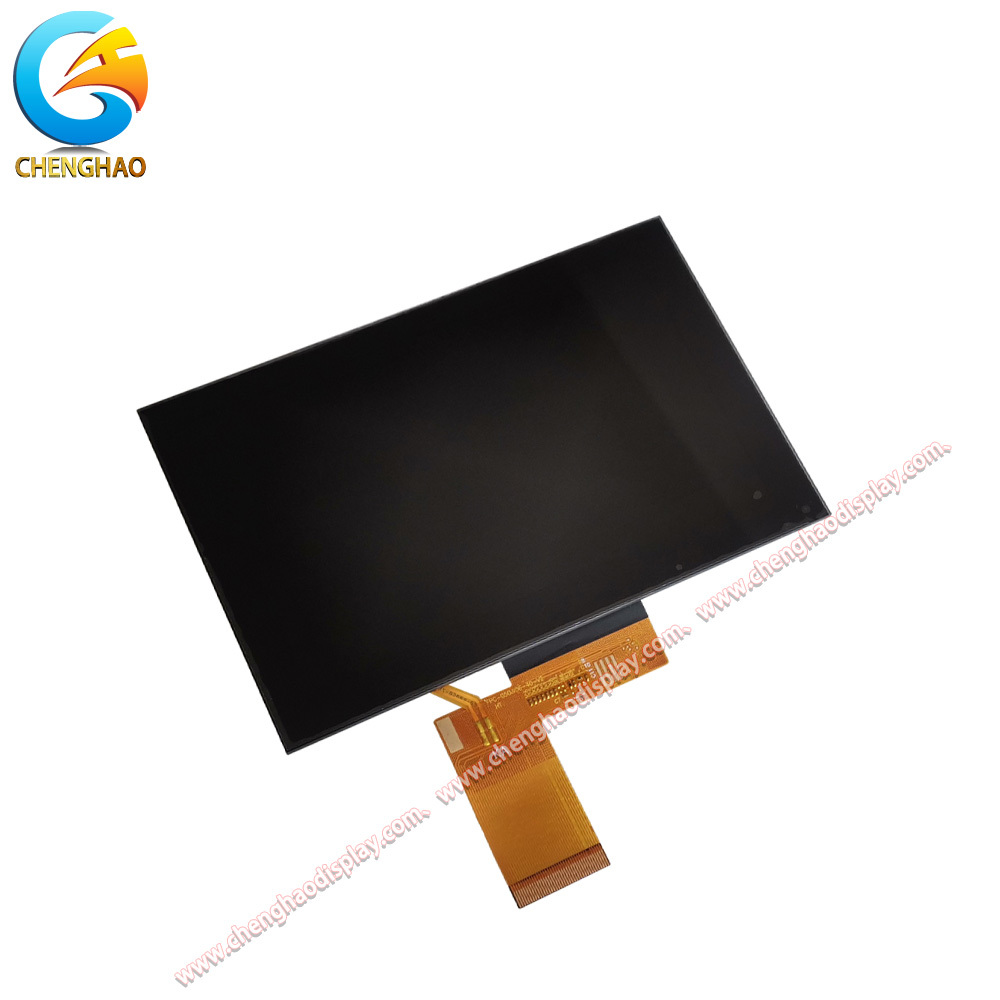

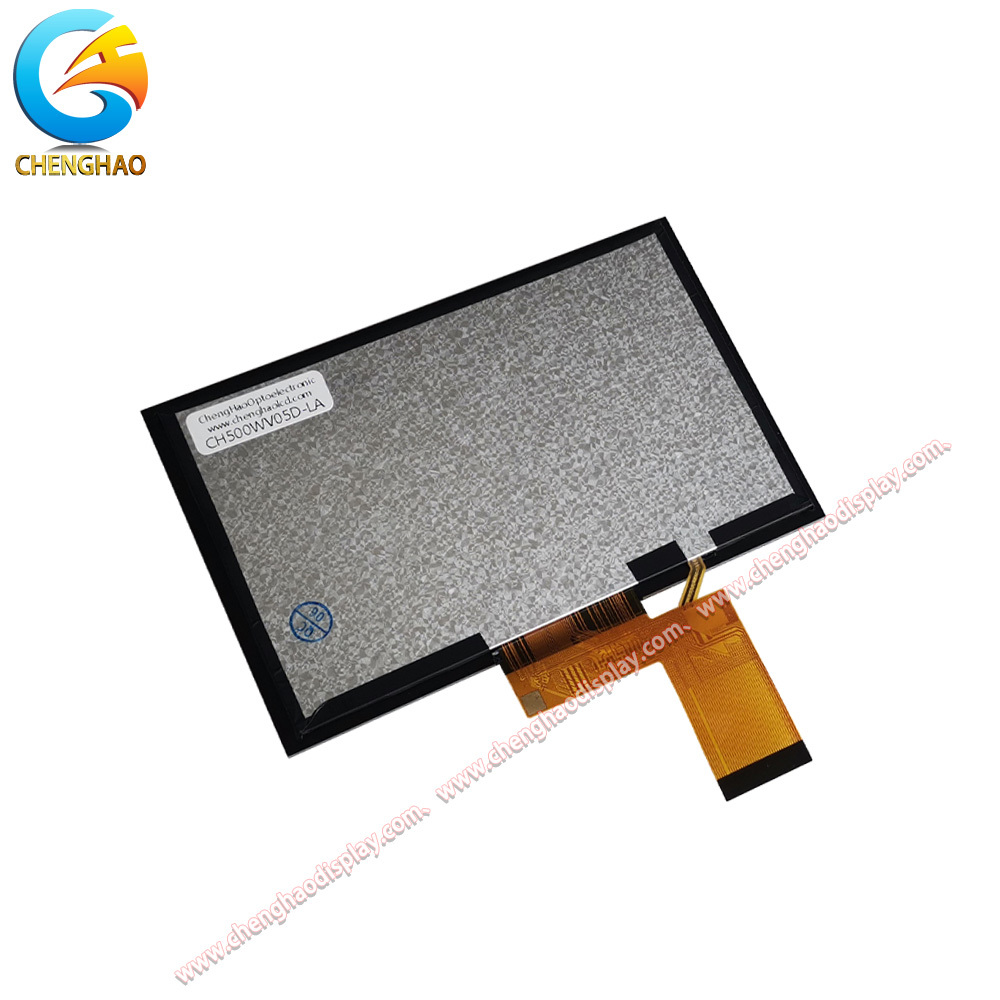

5 Inch Color Display Module 800x480 Resolution 16M Color IPS TFT Lcd

Minimum Order Quantity : 100 Pcs Packaging Details : All The Products Are Packed In Right Way To Keep It Safe. For Small Sizes Of Products We Use Tray + Carton, For Bigger Sizes We Use Foam Slot + Carton. We Also Design Packages According To Customers' Requirements
Delivery Time : 3~7 Days 支払条件 : T/T、Alipay、PayPal
Supply Ability : 50000000 Pcs/month
ブランド名: Chenghao Optoelectronic 証明: CE, ISO9001, Rose, SGS
Model Number: CH500WV05D-LA 文書: 製品説明書 PDF

詳細情報

色: 16m モジュールサイズ: 126.7x81.3x4.9 mm
アクティブ エリア サイズ: 108×64.8mm 視野の大きさ: 107.7x64.5 mm
スクリーンの明るさ: 450 Cd/m2 動作温度: -20 ~ +70°C
視聴方向: 80/80/80/80 保管温度: -30 ~ +80°C
ハイライト:

5 inch IPS TFT LCD display

,

800x480 resolution color display module

,

16M color TFT LCD screen

製品の説明

Product Description: Shenzhen ChengHao Optoelectronic Co., Ltd.’s CH500WV05D-LA is a 5.0-inch TFT LCD module engineered for scenario-specific optical and structural optimization, targeting devices that demand both precise visual output and hassle-free integration—such as household medical auxiliaries, smart utility meters, and portable field detectors. Unlike generic displays that offer one-size-fits-all specs, this module tailors key parameters to real-world usage pain
