| Minimum Order Quantity : | NO MOQ | Packaging Details : | All The Products Are Packed In Right Way To Keep It Safe. For Small Sizes Of Products We Use Tray + Carton, For Bigger Sizes We Use Foam Slot + Carton. We Also Design Packages According To Customers' Requirements |
|---|---|---|---|
| Delivery Time : | 3~5 Working Days | Payment Terms : | TT Or Others |
| Supply Ability : | 300K Pcs/month |
| ブランド名: | Chenghao Optoelectronic | 証明: | CE 、RoHS、FCC |
|---|---|---|---|
| Model Number: | CH400OL001A | 文書: | 製品説明書 PDF |
|
詳細情報 |
|||
| OLEDインターフェース: | MIPI | 動作温度: | -10 ~ +60 °C |
|---|---|---|---|
| アクティブエリアのサイズ: | 65.448*75.144mm | FPCピン番号: | 38 |
| 保管温度: | -20～+70℃ | 見る方向: | 無料 |
| 画面サイズ: | 3.92インチ | 表示タイプ: | 3.92インチAMOLED |
| ハイライト: | Sunlight readable OLED display,4 inch high resolution OLED,Outdoor electronic device OLED module |
||
製品の説明

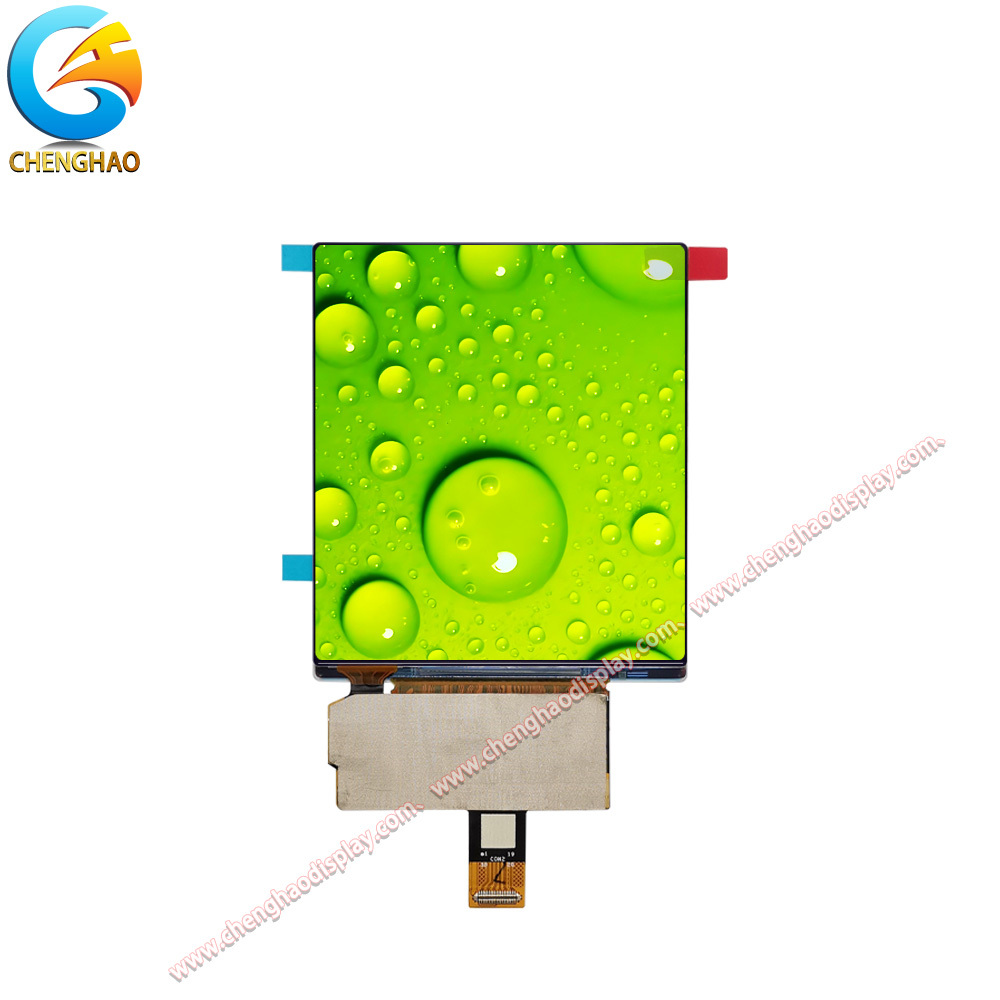

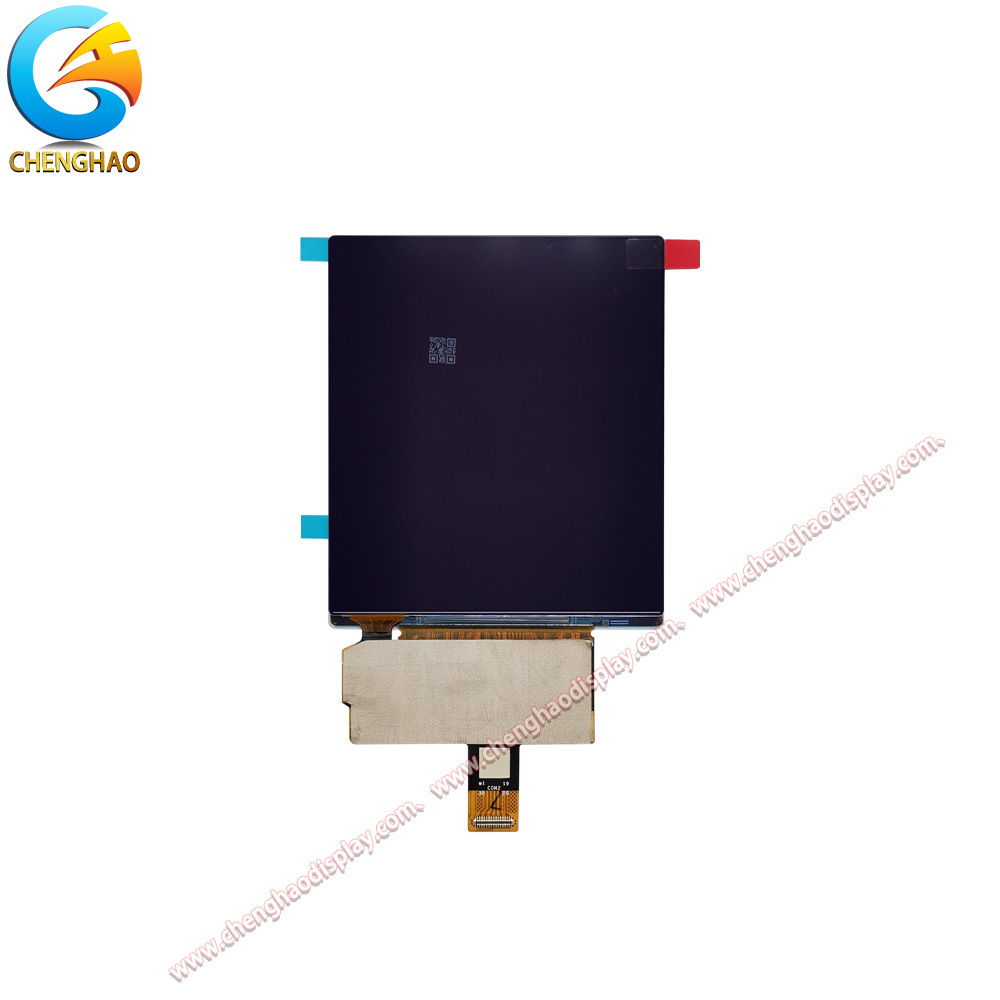

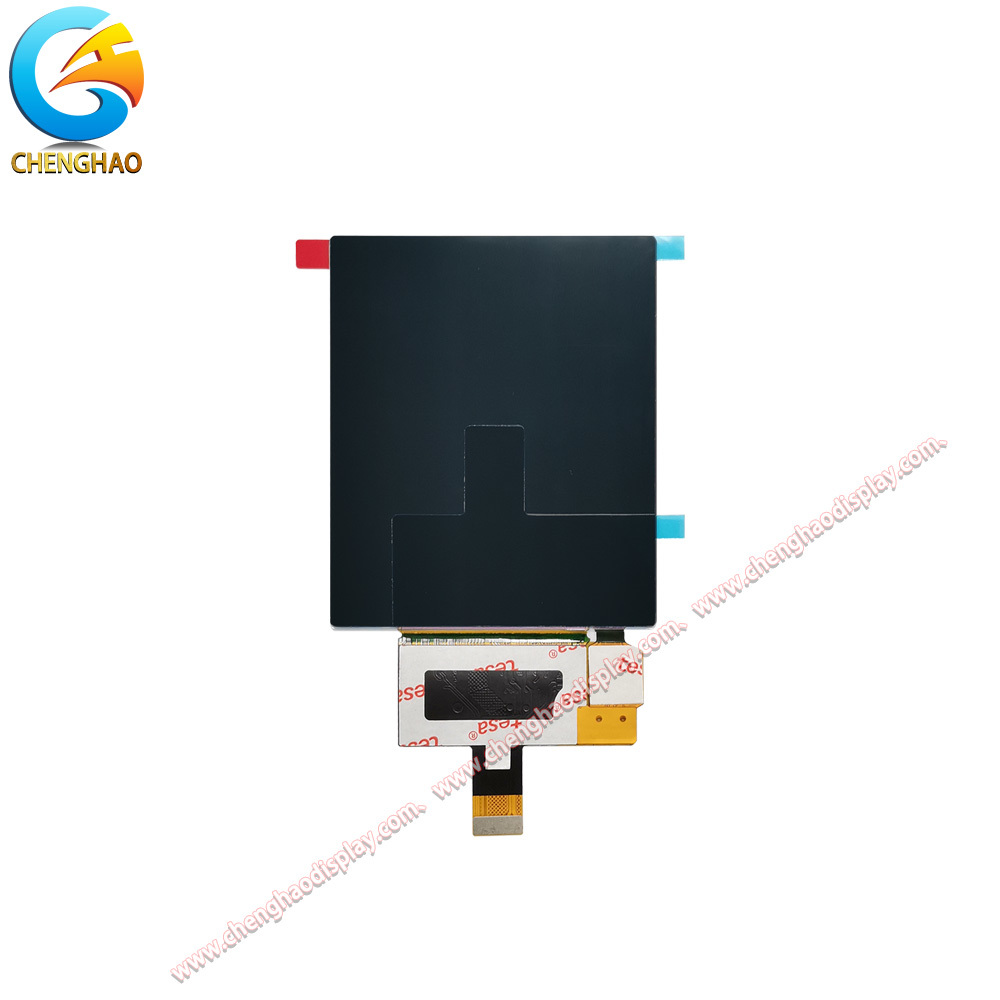

| The CH400OL001A is a 4-inch AMOLED display module (3.92-inch effective area) designed for superior visual performance in outdoor electronic devices. Featuring a native 1080x1240 high resolution, this module ensures sharp and clear visualizations of complex data and high-definition graphical interfaces in professional environments. Employing active-matrix OLED technology, the display achieves exceptional contrast and 600 cd/m² brightness, making it an attractive "sunlight-visible OLED" solution for semi-outdoor and high ambient light applications. |  |
|
The self-emissive nature of AMOLED pixels ensures deep blacks and vibrant colors, eliminating the need for a bulky backlight module and achieving an ultra-thin 1.2mm form factor, ideal for compact hardware integration. For seamless interaction, the module integrates an FT*** capacitive touch IC, providing a responsive and durable user interface for handheld instruments. Data transmission is processed via a high-speed MIPI interface, optimizing power efficiency, crucial for battery-powered portable devices. With its full-viewing angle and RoHS compliance, the CH400OL001A is the top choice for engineers seeking a space-saving display solution that does not sacrifice optical clarity or reliability under harsh conditions. |
| Display Type | 3.92" AMOLED |
| Resolution | 1080*1240 Dots |
| Viewing Direction | Free |
| Module Size | 67*80*0.7 Mm |
| OLED Interface | MIPI |
| Operating Temperature | -10 ~ +60 ℃ |
| FPC Pin numbers | 38 |
| Screen Brightness | 600 Cd/m2 |
| Storage Temperature | -20 ~ +70 ℃ |
| Screen Size | 3.92 Inch |
Leveraging our team of 125 engineers and automated production lines, we provide comprehensive B2B support:
Q: Can this OLED be used in direct sunlight?
A: While 600 nits is excellent for high-ambient light, the AMOLED’s high contrast ratio significantly improves the perceived readability compared to standard LCDs. For extreme sunlight, we recommend our Anti-Reflective (AR) coating customization.
Q: What is the benefit of the MIPI interface for outdoor gear?
A: The MIPI interface provides high-speed data transmission with minimal power draw, which is essential for maximizing the battery life of portable outdoor devices.
Q: Is the touch screen compatible with outdoor use?
A: Yes, the FT*** touch IC is designed for reliability. We can further customize the cover glass and sensitivity to ensure it performs well in varied outdoor conditions.
