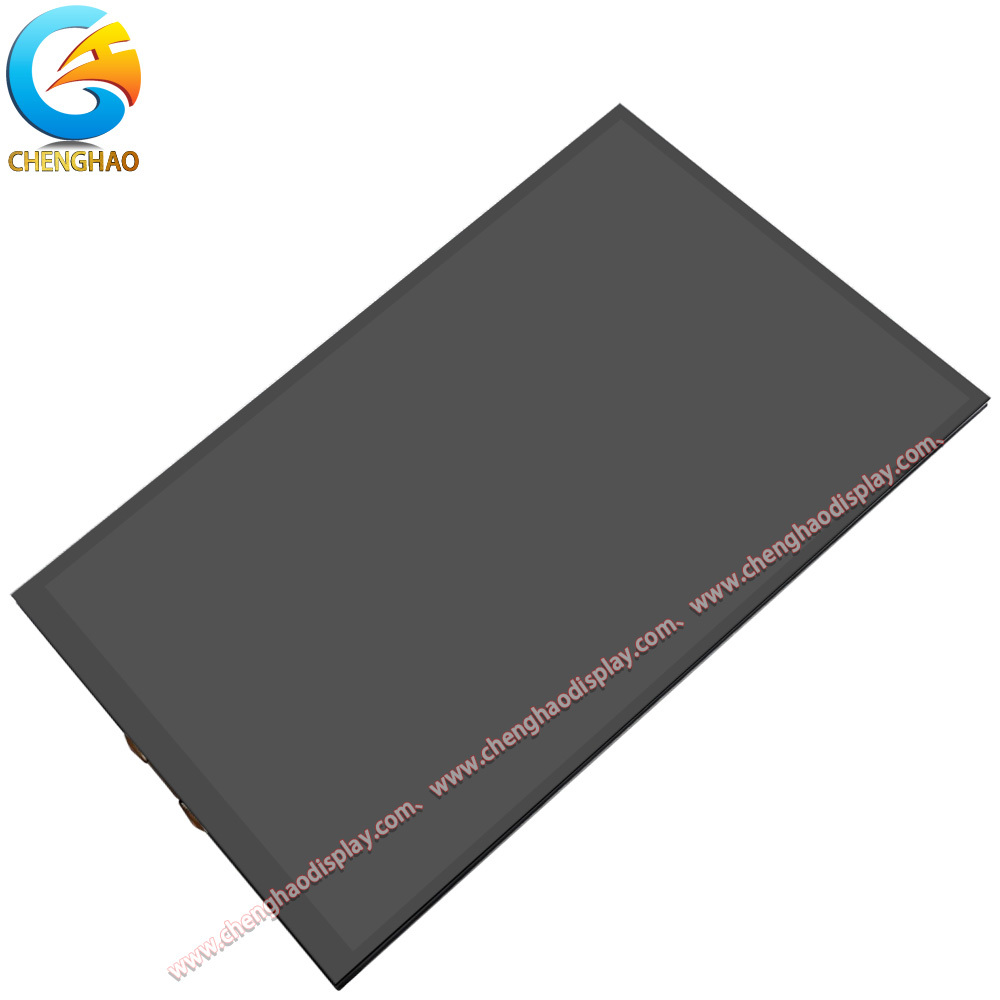

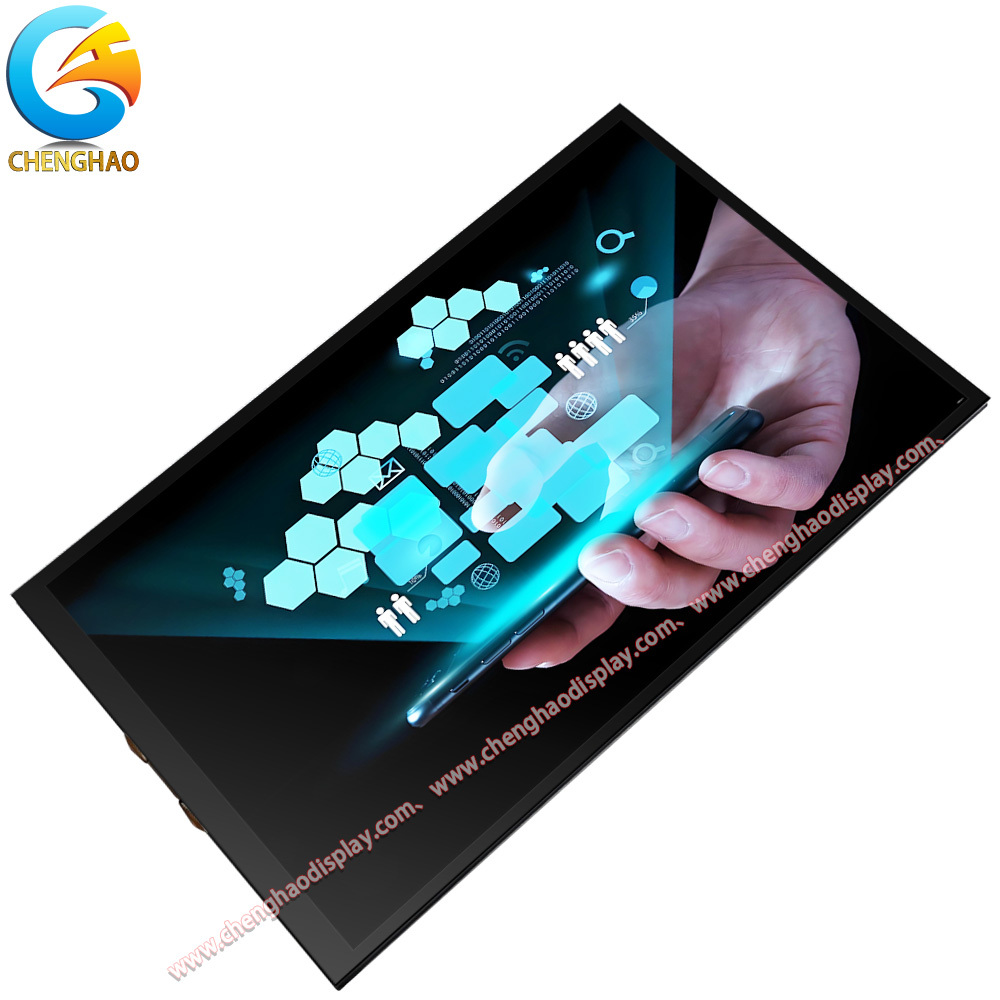

10.1 Inch Industrial Touchscreen 800x1280 Color Tft Module with HDMI Driver Board

Product Description:

The CH101WX05C-CT is a 10.1-inch TFT LCD module designed to deliver reliable visual performance with its IPS (In-Plane Switching) technology, which ensures consistent color reproduction and wide viewing angles of 80 degrees in all directions. This display module features a resolution of 800x1280 pixels, providing clear and sharp images suitable for various applications that require detailed visual output. The transmissive display mode combined with a normally black background enhances contrast, making the screen readable in diverse lighting conditions.

One of the key aspects of the CH101WX05C-CT is its integration of a capacitive touch panel with a glass lens thickness of 1.1 mm. The touch panel supports multi-touch input, enabling intuitive and responsive user interactions. The touch functionality is powered via USB (DC 5V), which simplifies connectivity and power management, making it compatible with a broad range of devices and operating systems including Windows, Linux, macOS, and Raspberry Pi platforms. The module’s backlight system employs white LEDs that provide a luminance of 300 cd/m², which is adequate for indoor environments and can be customized to meet specific brightness requirements. The TFT dot pitch of 0.1692 mm ensures fine pixel density, contributing to the display’s ability to render detailed graphics and text crisply. The active display area measures 135.36 mm by 216.576 mm, offering ample space for user interfaces and multimedia content. In terms of physical design, the CH101WX05C-CT maintains a slim profile with an overall thickness of 4.45 mm, including the PCBA and components. The module’s outline dimensions are 143.4 mm in width and 228.9 mm in height, making it suitable for integration into compact devices where space efficiency is critical. The robust construction includes multiple layers such as the glass sensor, SCA (Spacer and Cover Adhesive), and foam padding, which together enhance durability and maintain touch sensitivity.

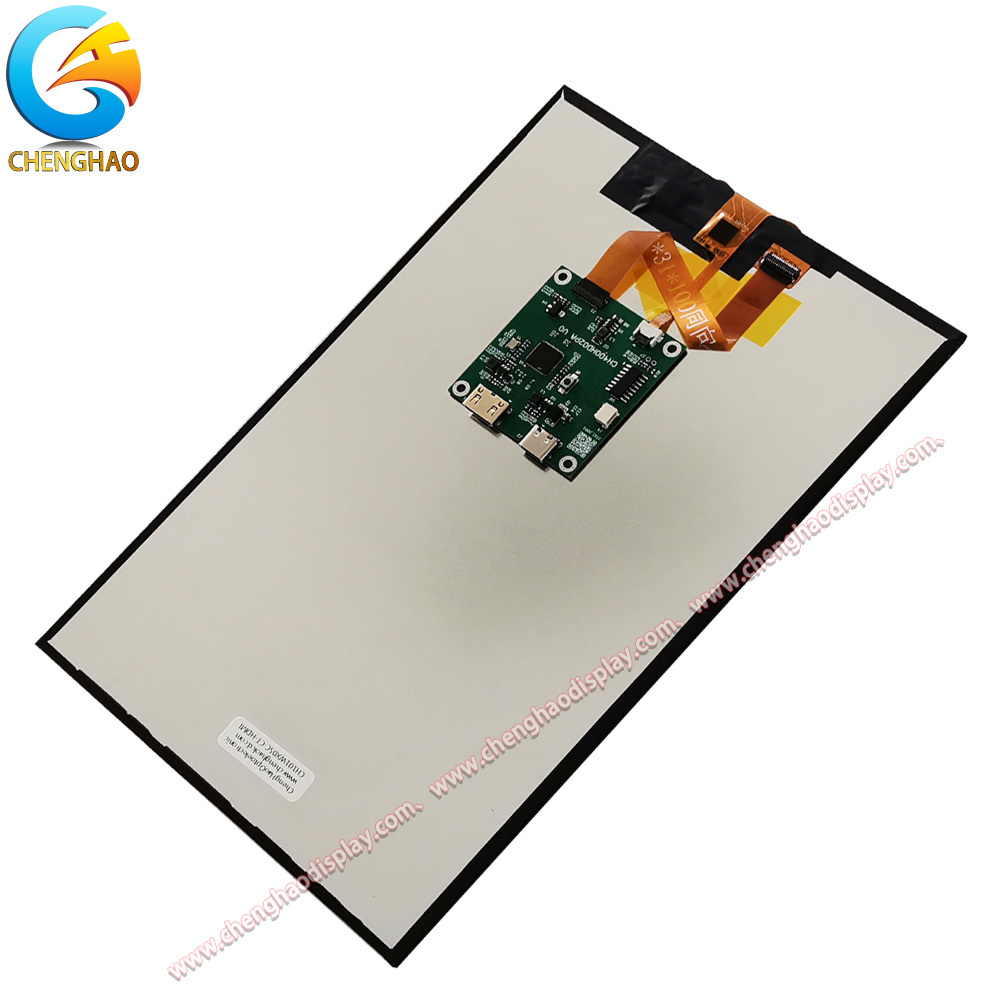

Connectivity is facilitated through an HDMI interface board sized 46 mm by 50 mm by 5 mm, supporting high-quality video transmission. This interface, combined with the USB touch panel connection, allows for seamless integration into various embedded systems, industrial equipment, and consumer electronics. The module’s compatibility with multiple operating systems further broadens its application scope.

Overall, the CH101WX05C-CT is a versatile display solution designed for industries such as industrial control, medical devices, automotive displays, smart home systems, and IoT equipment. Its combination of high-resolution visuals, responsive capacitive touch, and flexible interface options makes it a practical choice for developers seeking a reliable and customizable TFT LCD module.

Features:

Precise External Dimensions
The CH101WX05C-CT module has precise external dimensions measuring 143.4 mm in width, 228.9 mm in height, and a maximum thickness of 4.45 mm including the PCBA and components. This careful dimensioning supports integration into devices where space optimization is critical, such as portable electronics and embedded systems.

High-Definition Resolution
This display offers a resolution of 800 (RGB) × 1280 pixels, which ensures detailed and sharp image presentation. The pixel density supports clear rendering of text and graphics, making it suitable for applications that demand high visual clarity, including medical instrumentation and industrial interfaces.

HDMI LCD Interface
The CH101WX05C-CT utilizes an HDMI interface for video input, facilitating high-quality digital signal transmission. This interface is widely compatible with modern computing platforms and embedded systems, allowing for straightforward connection and reducing signal degradation compared to analog interfaces.

Wide Viewing Angles
Featuring an 80-degree viewing angle in all directions (up, down, left, right), the display maintains consistent color and brightness even when viewed off-axis. This characteristic is essential for collaborative environments or multi-user displays where screen visibility from various angles is necessary.

Capacitive Touch Functionality
Equipped with a capacitive touch panel, the module supports multi-touch gestures and offers responsive touch sensitivity. The touch panel is powered via USB (DC 5V), simplifying integration and ensuring compatibility with a variety of operating systems including Windows, Linux, and macOS.

Technical Parameters:

Applications:

Industrial Control
In industrial control systems, the CH101WX05C-CT module is often integrated into operator panels and human-machine interfaces (HMIs). Its 10.1-inch IPS display with a resolution of 800x1280 pixels provides clear visualization of process parameters, system statuses, and control menus. The wide 80-degree viewing angle ensures that multiple operators can view the screen simultaneously without distortion or color shift. The capacitive touch panel allows for intuitive control inputs, enabling operators to navigate complex industrial software efficiently. The HDMI interface simplifies connection to industrial controllers and embedded systems, making it a reliable choice for factory automation and monitoring equipment.

Smart Home
In smart home applications, the CH101WX05C-CT serves as a central control display for devices such as smart thermostats, security panels, and home automation hubs. Its compact size and slim profile allow it to be embedded seamlessly into wall-mounted control units. The capacitive multi-touch functionality supports gesture-based commands, enhancing user experience for adjusting lighting, temperature, or security settings. The module’s compatibility with multiple operating systems, including Linux and Raspberry Pi, facilitates integration with popular smart home platforms. The moderate luminance of 300 cd/m² is suitable for indoor environments, ensuring comfortable viewing without excessive power consumption.

Medical Equipment
In medical devices, the CH101WX05C-CT is used in equipment such as patient monitoring systems, diagnostic instruments, and portable health devices. The high resolution and IPS technology provide accurate and consistent color reproduction, which is critical for displaying vital signs and medical imaging clearly. The capacitive touch panel allows healthcare professionals to interact with the device easily, improving workflow efficiency. The module’s robust construction and reliable performance under a wide temperature range make it suitable for clinical environments. Its HDMI interface supports seamless connectivity with various medical-grade computing platforms, ensuring smooth data visualization and control.

FAQ:

Q1: What is the model number of the Chenghao Optoelectronic TFT LCD Capacitive Touchscreen?

A1: The model number is CH101WX05C-CT.

Q2: Does this touchscreen have any certifications?

A2: Yes, the product is certified with CE, RoHS, and FCC.

Q3: Is there a minimum order quantity (MOQ) requirement for this product?

A3: No, there is no minimum order quantity for the CH101WX05C-CT touchscreen.

Q4: How is the product packaged to ensure safety during delivery?

A4: All products are packed securely. For small sizes, we use tray plus carton packaging; for bigger sizes, foam slot plus carton is used. We can also design packaging according to customers’ requirements.

Q5: What is the typical delivery time for this touchscreen?

A5: The delivery time typically ranges from 3 to 7 days.

Q6: What payment terms are accepted for purchasing this product?

A6: Payment can be made via TT (Telegraphic Transfer) or other agreed methods.

Q7: What is the supply capacity of Chenghao Optoelectronic for this touchscreen?

A7: The supply ability is up to 20,000,000 pieces per month.
