10.1 Inch HDMI Lcd Display 1280x800 IPS TFT Module Support Windows,Linux,Raspberry Pi,Mac Os System

Product Description:

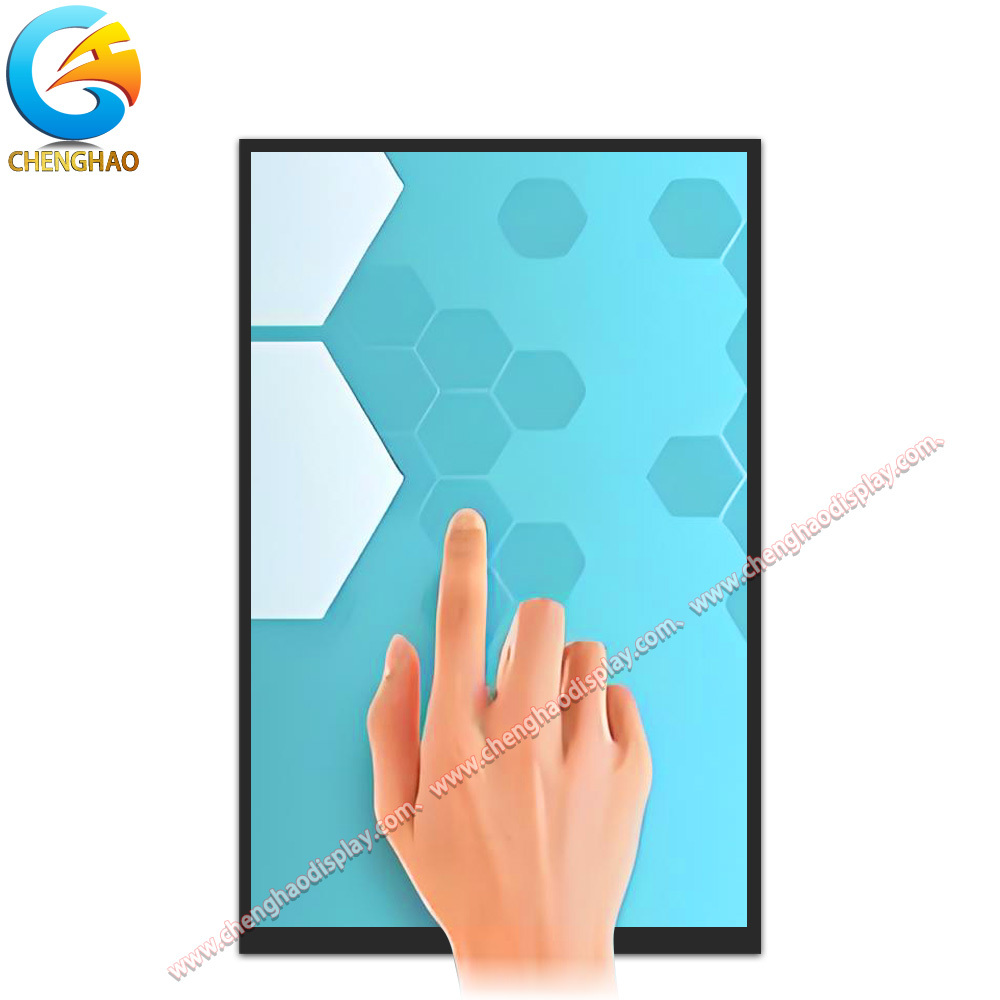

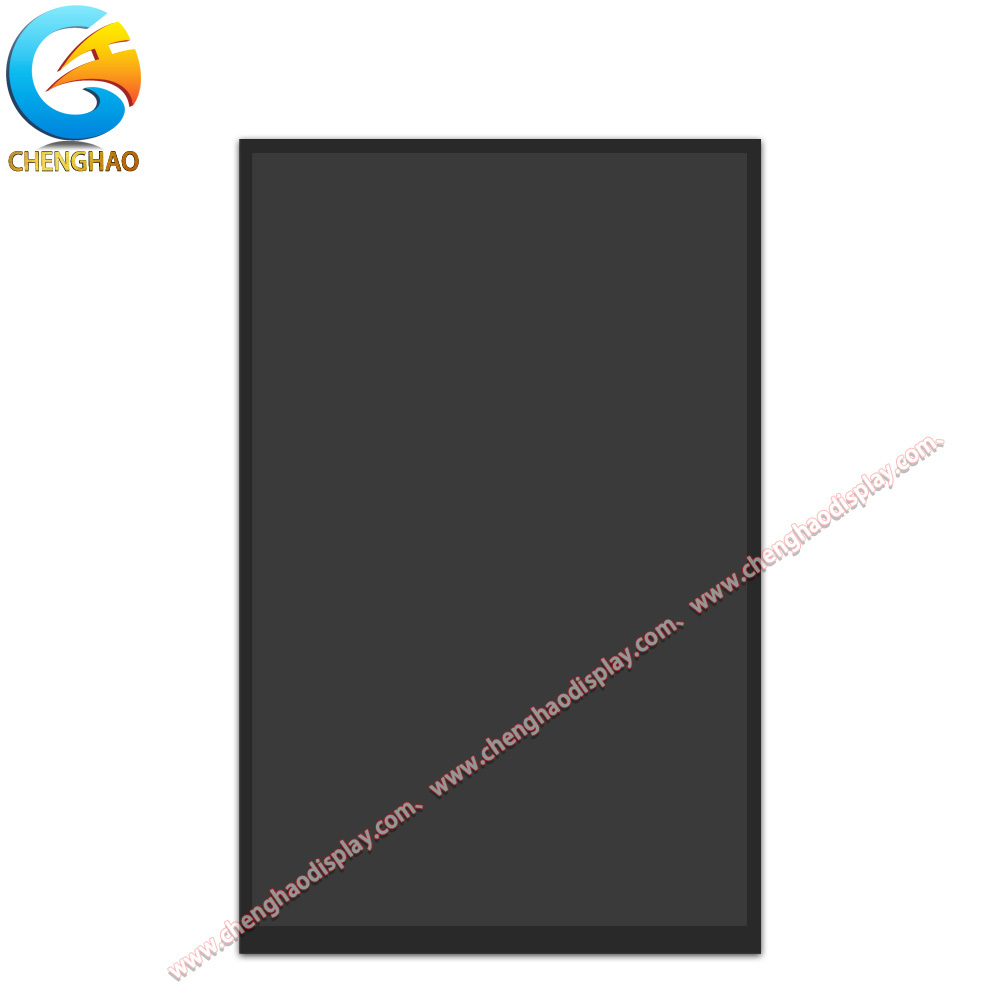

The CH101WX05C-CT is a 10.1-inch TFT LCD display module that meets diverse application needs with its balanced combination of size, resolution, and interface options. With a resolution of 800x1280 pixels, it delivers clear and detailed images suitable for industrial, medical, and consumer electronics applications. IPS panel technology ensures a wide viewing angle of 80 degrees horizontally and vertically, maintaining consistent color and contrast even when viewed from the side. The module integrates a durable 1.1mm thick glass capacitive touchscreen, powered via USB (DC 5V), and supports five-point touch sensing. The display uses white LED backlighting with a brightness of 300 cd/m², suitable for indoor environments, balancing brightness and power consumption.

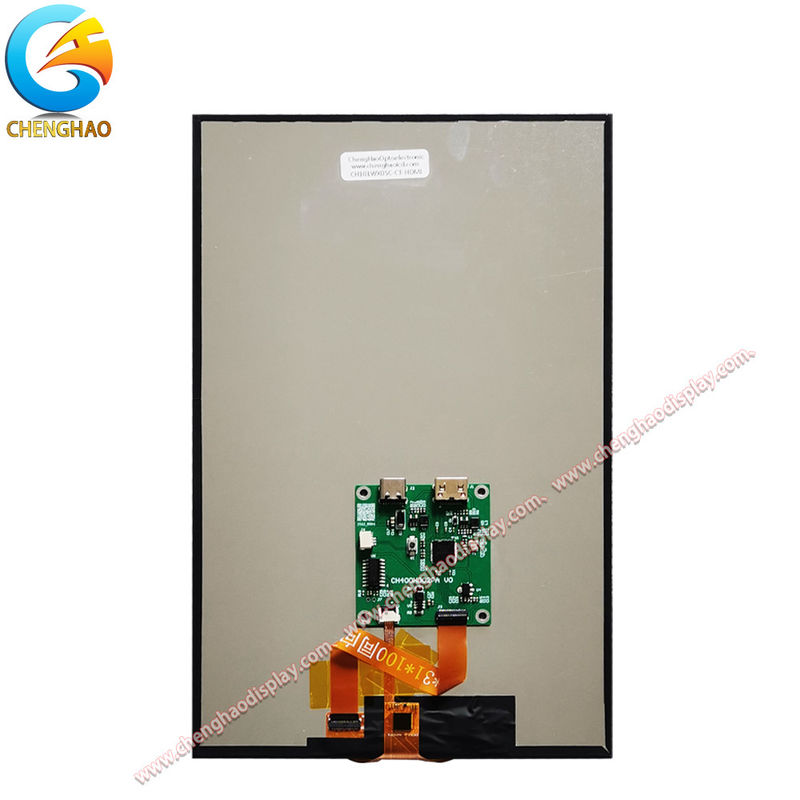

		The CH101WX05C-CT is equipped with a 46×50×5mm HDMI interface board for easy connection to modern digital devices and embedded systems, supporting direct use on platforms such as Windows, Linux, macOS, and Raspberry Pi. Measuring 143.4 mm × 228.9 mm with a total thickness of 4.45 mm (including PCBA and components), it is suitable for applications requiring a slim and lightweight display solution. The module structure includes a glass sensor, SCA, and foam buffer layer to ensure durability and touch sensitivity. Its robust design supports stable performance over a wide temperature range, making it suitable for industrial control, smart home, medical devices, and automotive applications.

Overall, the CH101WX05C-CT balances performance, versatility, and ease of integration, making it a practical choice for developers seeking customizable and reliable TFT LCD modules.

Features:

Integrated HDMI and USB Interfaces
The CH101WX05C-CT module features an HDMI interface for video input and a USB interface to power the capacitive touch panel. This combination allows for easy connection to various devices and operating systems such as Windows, Linux, macOS, and Raspberry Pi, enhancing compatibility and simplifying system integration.

High Brightness with White LED Backlight
Equipped with a white LED backlight, the module delivers a luminance of 300 cd/m². This level of brightness ensures clear visibility in indoor environments while maintaining energy efficiency, making it suitable for a wide range of applications.

Durable Multi-layer Construction
The display module is constructed with multiple layers including a 1.1 mm thick glass lens, SCA (Spacer and Cover Adhesive), glass sensor, and foam padding. This layered design enhances the durability of the module and maintains reliable touch sensitivity during use.

Slim and Compact Design
With an overall thickness of just 4.45 mm (including PCBA and components) and outline dimensions of 143.4 mm by 228.9 mm, the CH101WX05C-CT offers a slim and compact form factor. This makes it ideal for integration into space-constrained devices and applications requiring a lightweight display solution.

Technical Parameters:

Customization:

The CH101WX05C-CT display module offers extensive customization options tailored to meet specific project requirements within the TFT LCD industry. The customization process typically starts with a detailed consultation to understand the customer’s unique application needs, including desired display size, resolution, interface type, touch functionality, and environmental conditions.

One key customization aspect is the mechanical design. Customers can request modifications to the module’s outline dimensions, thickness, or mounting hole positions to ensure seamless integration into their product enclosures. For example, the thickness of the glass lens or the overall module can be adjusted to fit slim or compact device designs. This flexibility is crucial for applications in industrial control panels, medical devices, or automotive dashboards where space constraints are common.

Interface customization is another important area. While the standard CH101WX05C-CT comes with an HDMI interface and USB-powered capacitive touch panel, customers may require alternative interfaces such as MIPI, RGB, or LVDS to match their hardware ecosystem. Chenghao Optoelectronic supports redefining the LCD and touch panel interfaces, enabling compatibility with various controller boards and operating systems, which reduces development time and enhances system stability.

Backlight and brightness adjustments are also available. The module’s white LED backlight with a default luminance of 300 cd/m² can be customized to higher brightness levels for outdoor or high ambient light environments or dimmed for power-saving in portable devices. Additionally, customers can specify features like anti-glare coatings or sunlight-readable enhancements to improve visibility under challenging lighting conditions.

Touch panel customization includes options for different touch technologies, such as capacitive or resistive, and the design of the touch sensor can be tailored to support single or multi-touch gestures. Touch panel interfaces can be modified to I2C, SPI, or USB depending on customer requirements, ensuring smooth integration with the target system.

Throughout the customization process, Chenghao Optoelectronic collaborates closely with customers, providing prototype development and iterative testing to ensure the final product meets all functional and aesthetic specifications. This one-stop solution approach—from design and prototyping to mass production—enables customers to receive a fully tailored TFT LCD module optimized for their specific application needs.

FAQ:

Q1: What is the model number of this TFT LCD Capacitive Touchscreen?

A1: The model number is CH101WX05C-CT from Chenghao Optoelectronic.

Q2: Does this product have any certifications?

A2: Yes, the TFT LCD Capacitive Touchscreen is certified with CE, RoHS, and FCC.

Q3: Is there a minimum order quantity required for this product?

A3: No, there is no minimum order quantity (No MOQ) for this product.

Q4: How is the product packaged to ensure safety during delivery?

A4: All products are packed appropriately to keep them safe. Small sizes are packed using tray + carton, while bigger sizes use foam slot + carton. Packaging can also be customized according to customers' requirements.

Q5: What is the typical delivery time and payment terms for ordering this touchscreen?

A5: The delivery time is usually between 3 to 7 days. Payment terms include TT (Telegraphic Transfer) or other agreed methods.

Q6: What is the supply ability of Chenghao Optoelectronic for this product?

A6: Chenghao Optoelectronic can supply up to 20,000,000 pieces per month.
